Delivering Confidence and Simplicity during Neuromuscular Blockade

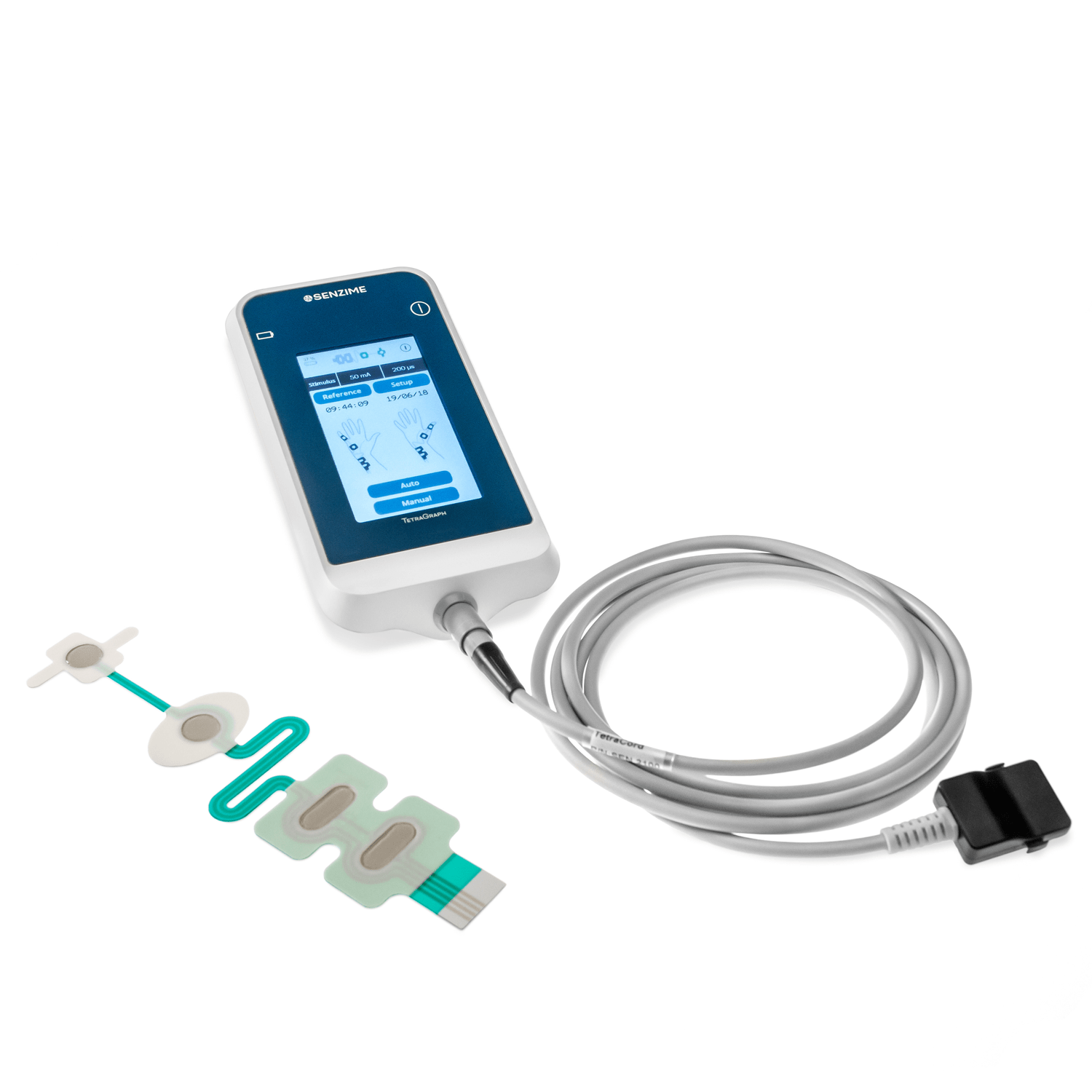

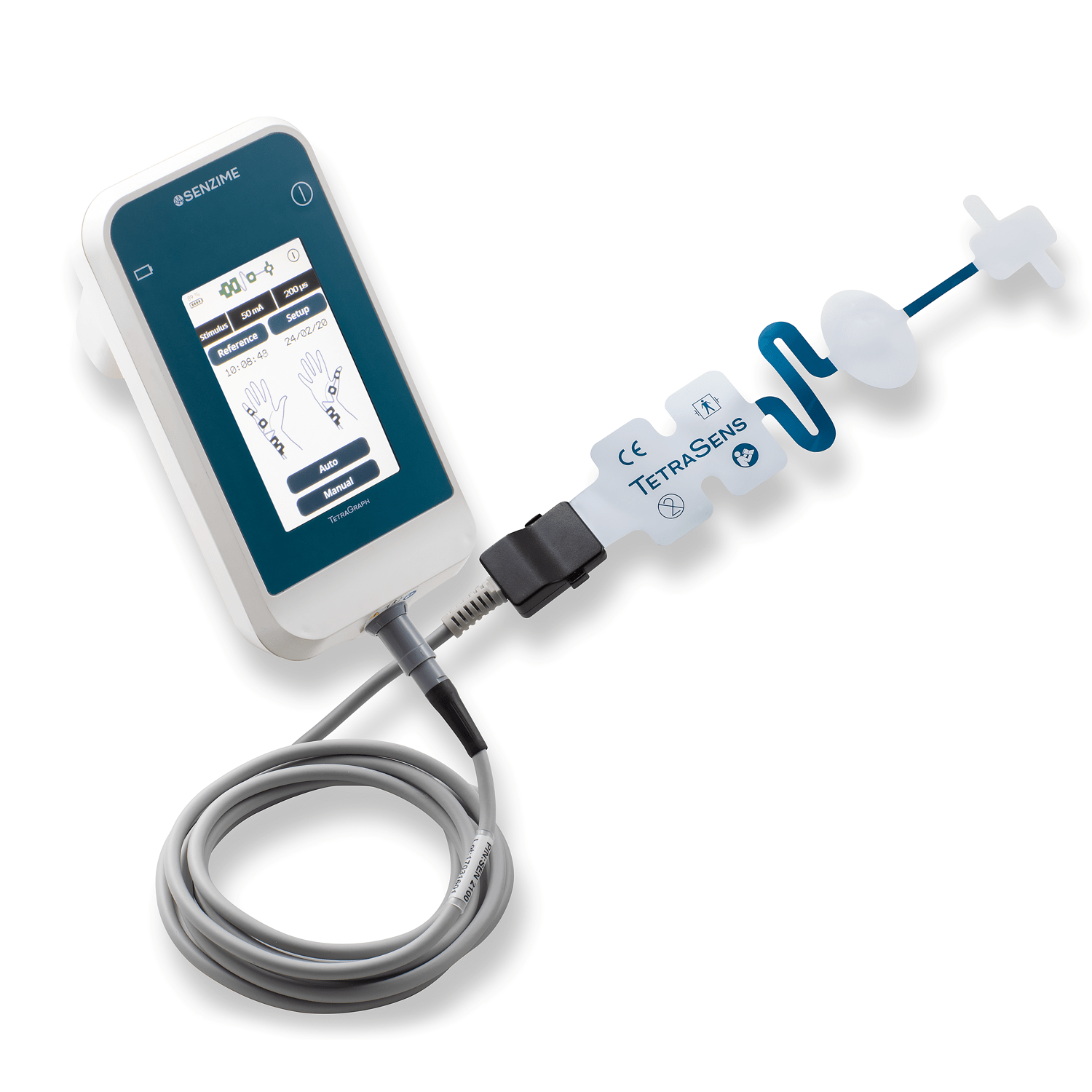

TetraGraph is a quantitative neuromuscular transmission monitor based on electromyography (EMG). The TetraGraph monitor stimulates, measures, analyzes and displays muscle function in surgical patients receiving neuromuscular blocking agents (NMBAs). NMBAs are used in almost 50% of surgical cases. Inadequate reversal of NMBAs can lead to residual neuromuscular blockade (RNMB). RNMB delays recovery and can lead to life-threatening complications. To prevent complications, quantitative neuromuscular monitoring is rapidly becoming the standard of care when NMBAs are administered.

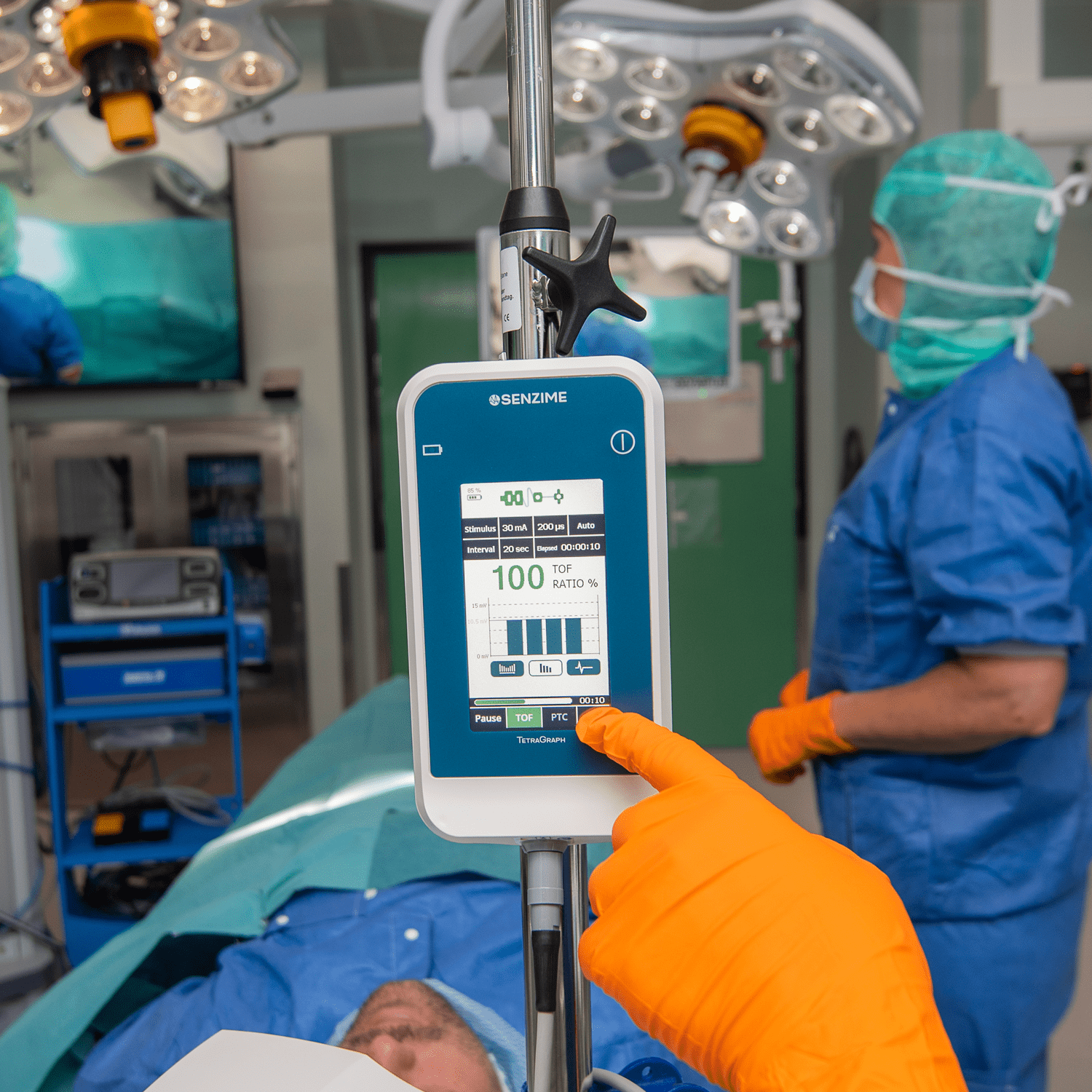

The TetraGraph monitor is easy to use and features gold standard EMG technology for accurate measurements to bring confidence to the anesthesiology practice. The device has a quick start up time and does not require calibration. The arm can be tucked under surgical drape and can thus be used in all types of procedures, including cardiac, neuro, laparoscopic, robotic and bariatric surgeries. TetraGraph can be used from start to finish during the surgical procedure. The monitor enables objective assessment and facilitates titration of medication dosage to help clinicians determine when the patient’s neuromuscular block is sufficiently reversed to allow adequate spontaneous breathing. TetraGraph is small and portable and can travel with the patient to different settings like OR, PACU or ICU. The TetraGraph can be operated connected to mains electricity or battery operated.
Neuromuscular Transmission is the transfer of an electrical impulse between a motor nerve and its associated muscle. A Neuromuscular Transmission (NMT) monitor indicates the depth of neuromuscular block by stimulation of a peripheral motor nerve and evaluating the evoked muscle response (compound muscle action potential, CMAP). Transmission of impulses from the nerve to the muscle is blocked by neuromuscular blocking agents (NMBAs) causing transient muscle weakness and preventing the patient from moving and breathing spontaneously.
Muscle relaxation is used during general anesthesia to enable endotracheal intubation and to provide optimal surgical conditions. In critical care, muscle relaxation may be used during mechanical ventilation. In these circumstances, TetraGraph can be used as an objective monitor of Neuromuscular Transmission.
TetraGraph undertakes this function by periodically delivering electrical stimulation to the peripheral nerve and directly measuring the evoked electromyographic (EMG) response of the muscles (compound muscle action potential, CMAP). This provides a precise and automatic measurement of muscle response to a stimulus.
Like other technologies, EMG involves stimulation of a peripheral nerve and measurement of the response that is generated by the contraction of the innervated muscle. The difference from other technologies is that EMG measures an electrical event that occurs at the neuromuscular junction; the activation of postsynaptic receptors by acetylcholine (a chemical process) that converts it to a mechanical response (excitation- contraction coupling), that results in muscle contraction. Because measurement of function does not depend on physical movement (as MMG, AMG or KMG require), EMG is a better indicator of pure neuromuscular function- EMG is the new gold standard.
Neuromuscular Transmisson (NMT) is the transfer of an impulse between a nerve and a muscle in the neuromuscular junction. EMG measures the compound action potential, which is the first signal we are able to measure after neuromuscular transmission. Therefore, EMG is most specifically suited to monitor the effect of muscle relaxants without any mechanic interferences.

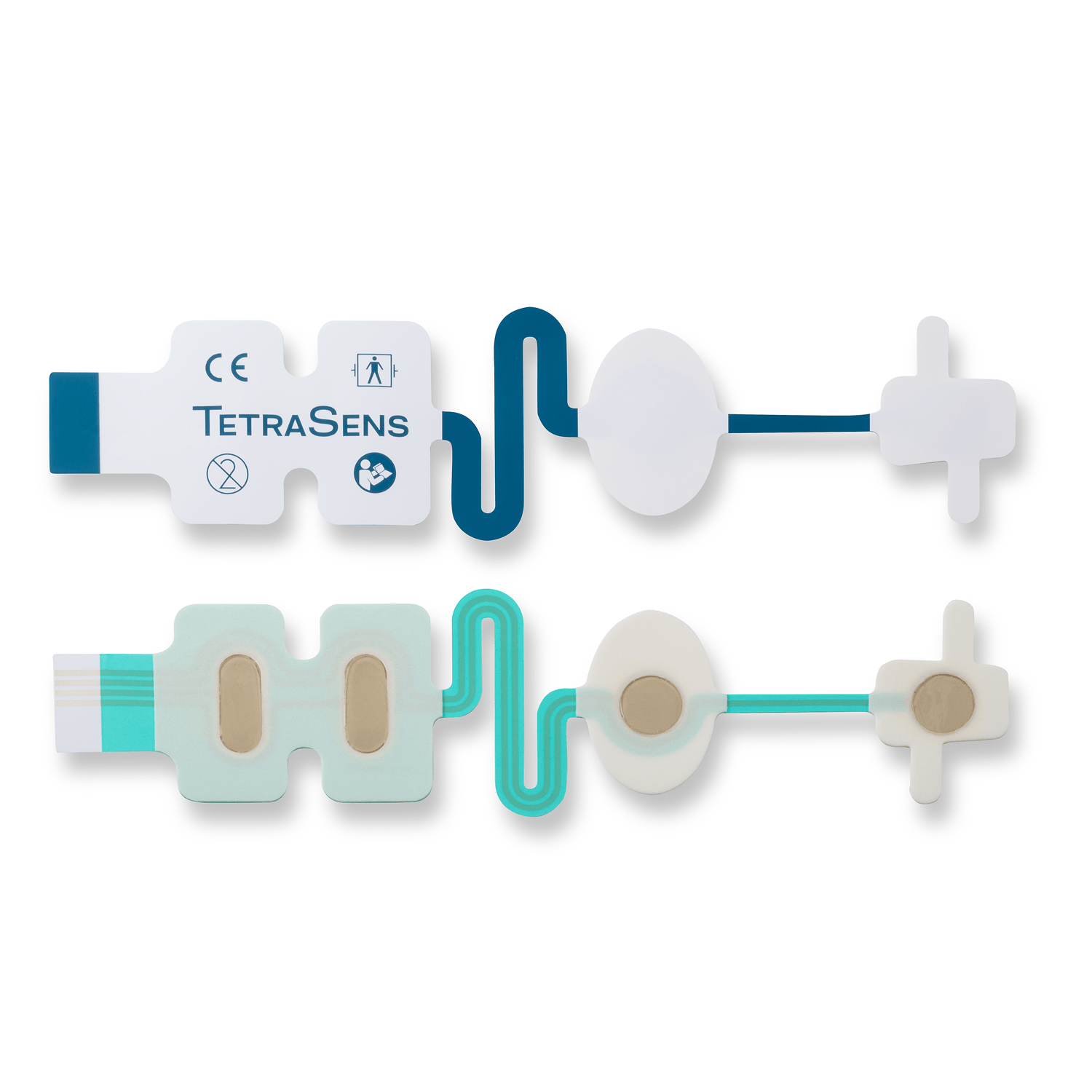

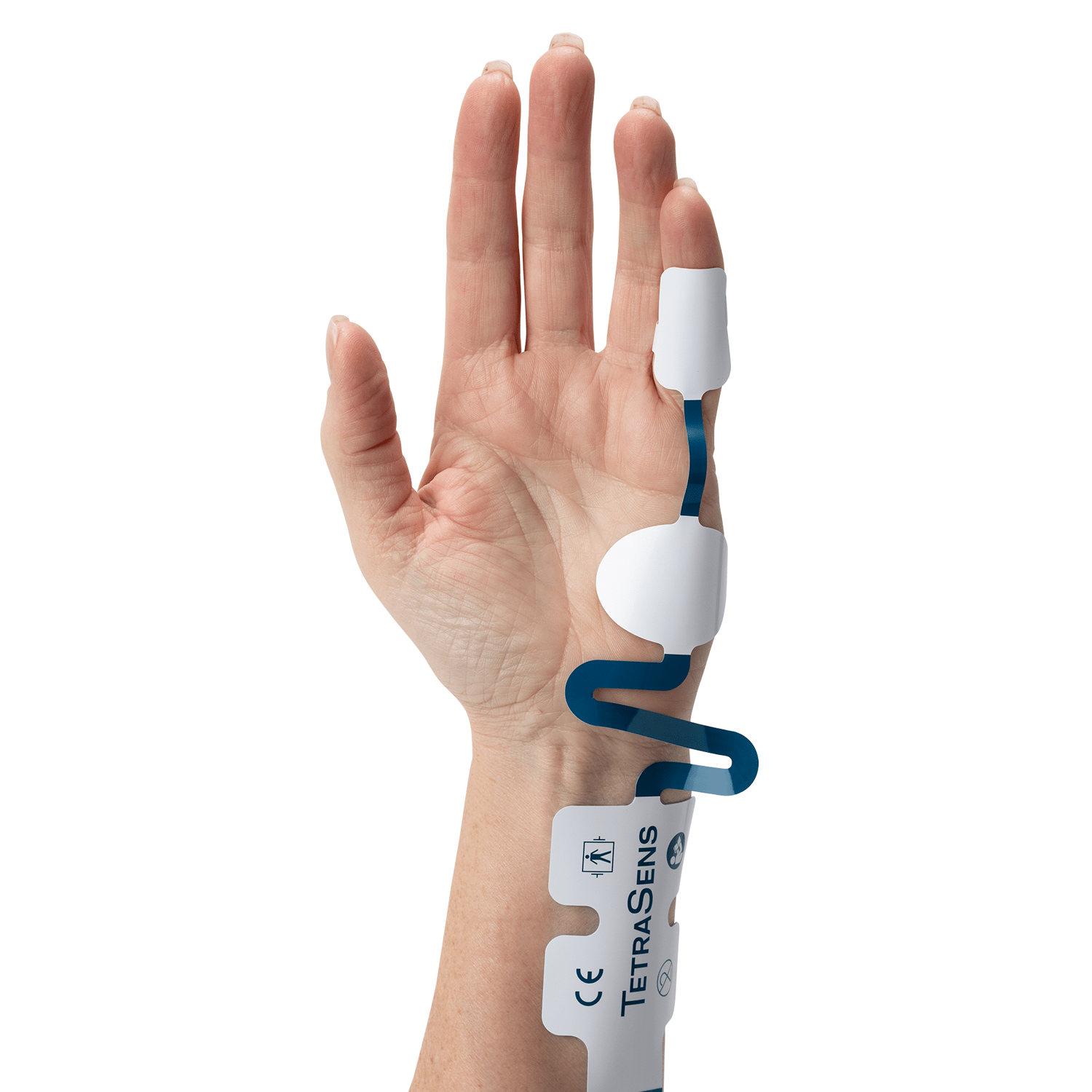

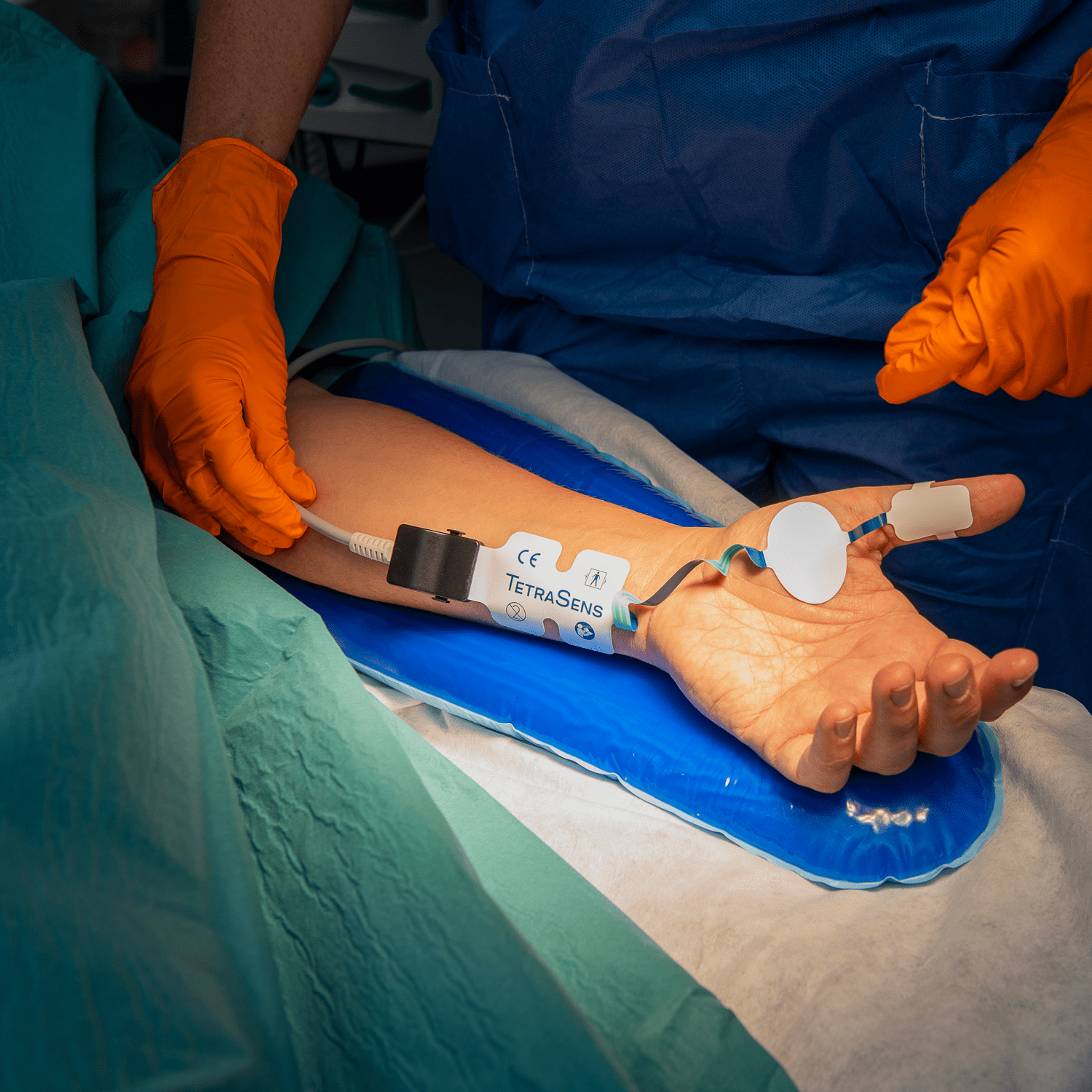

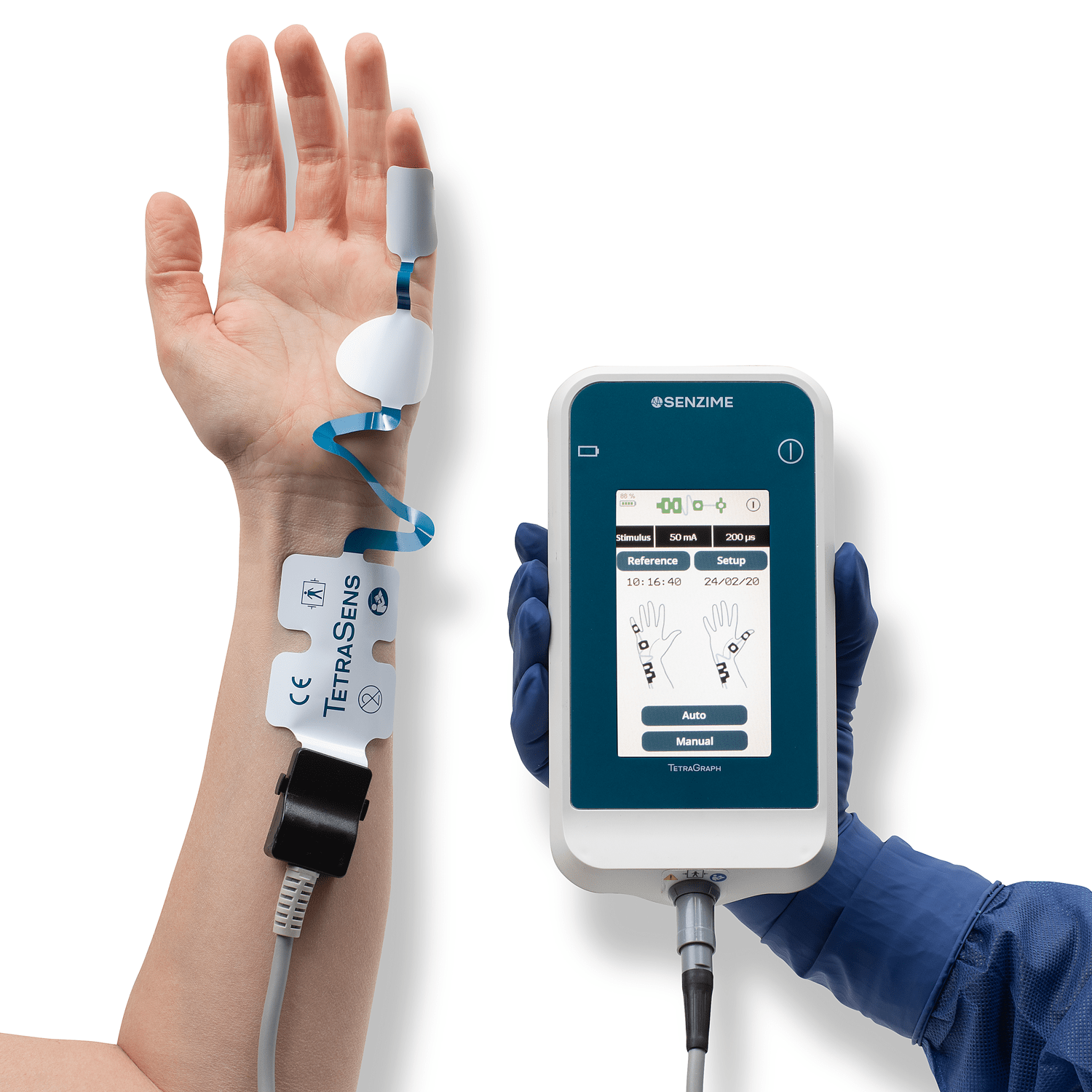

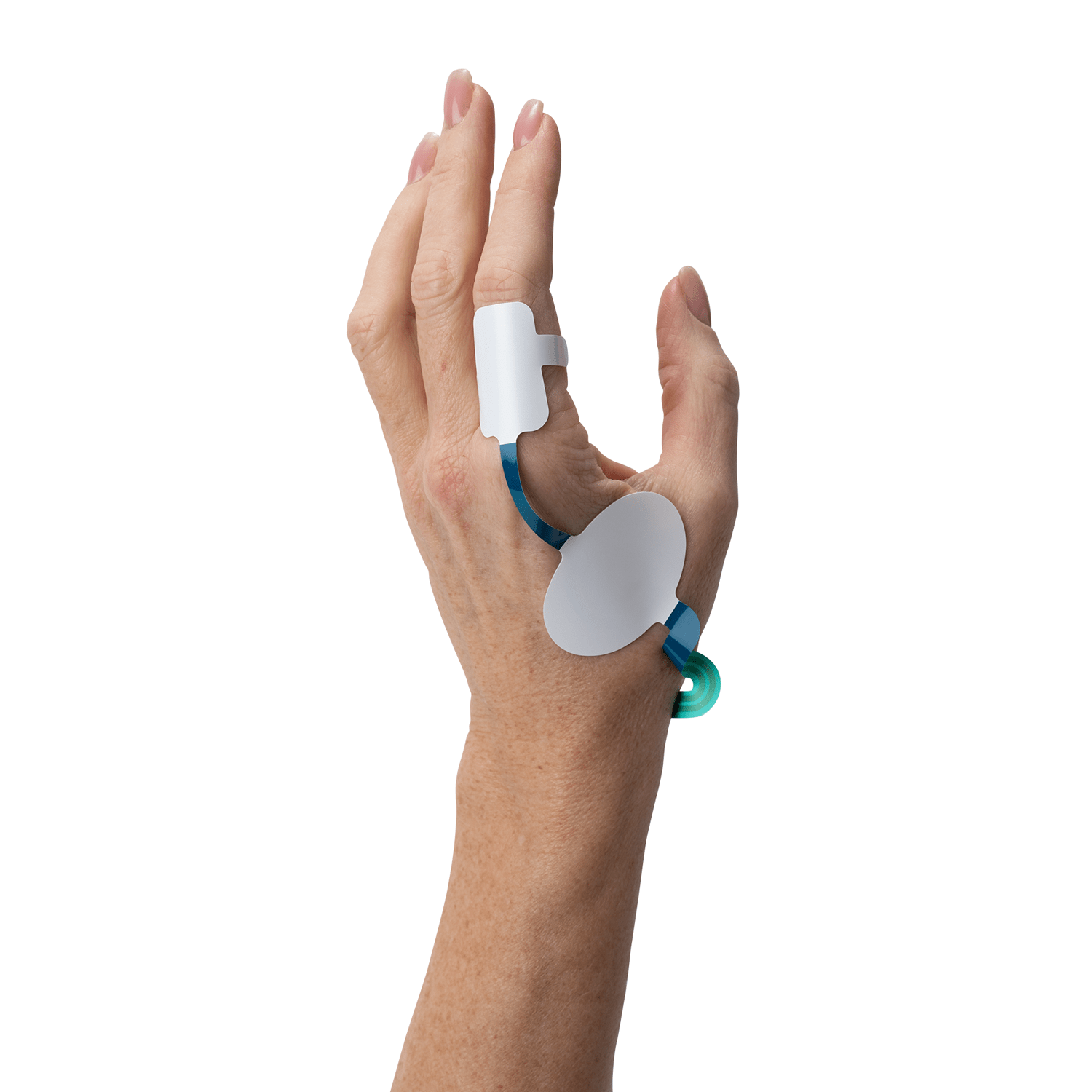

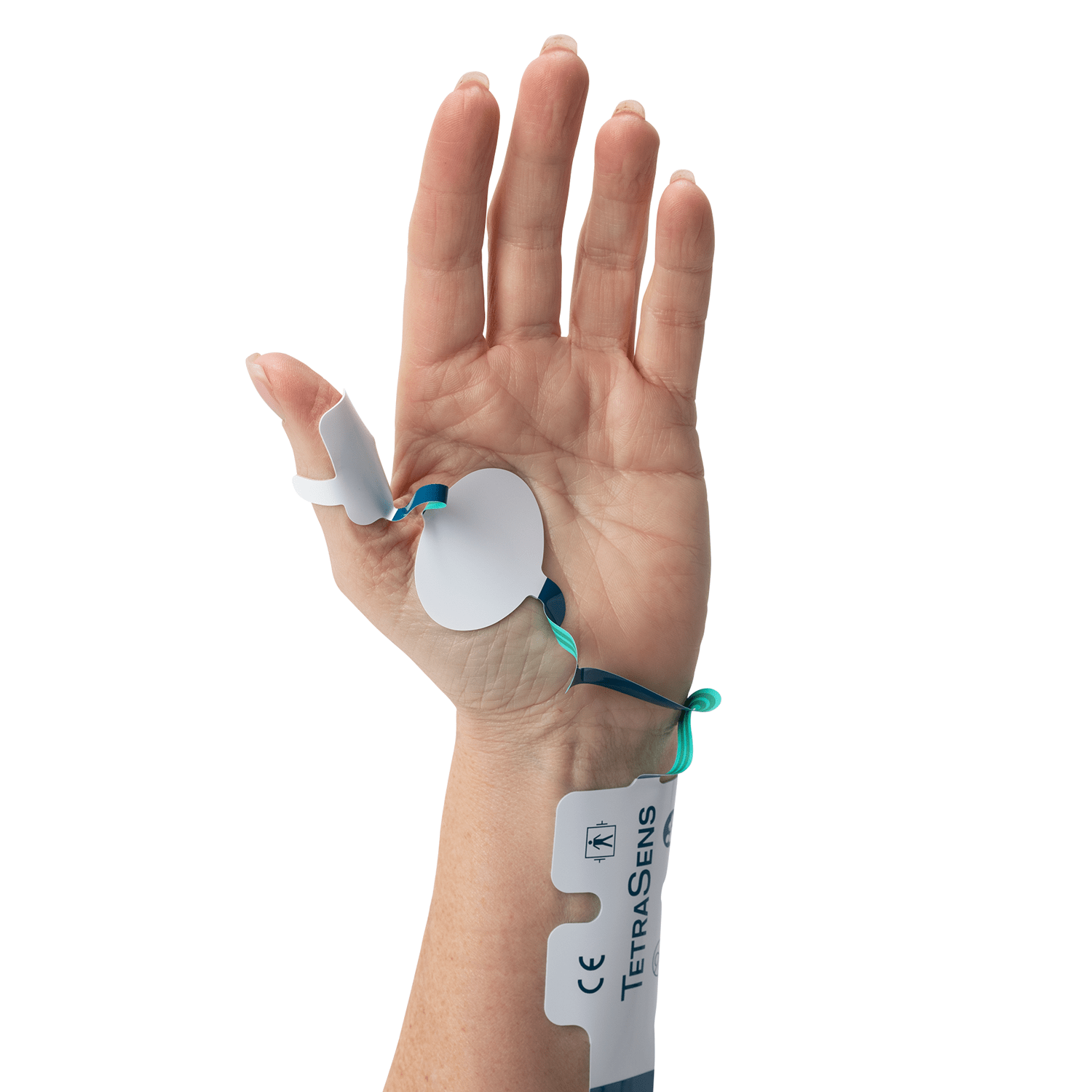

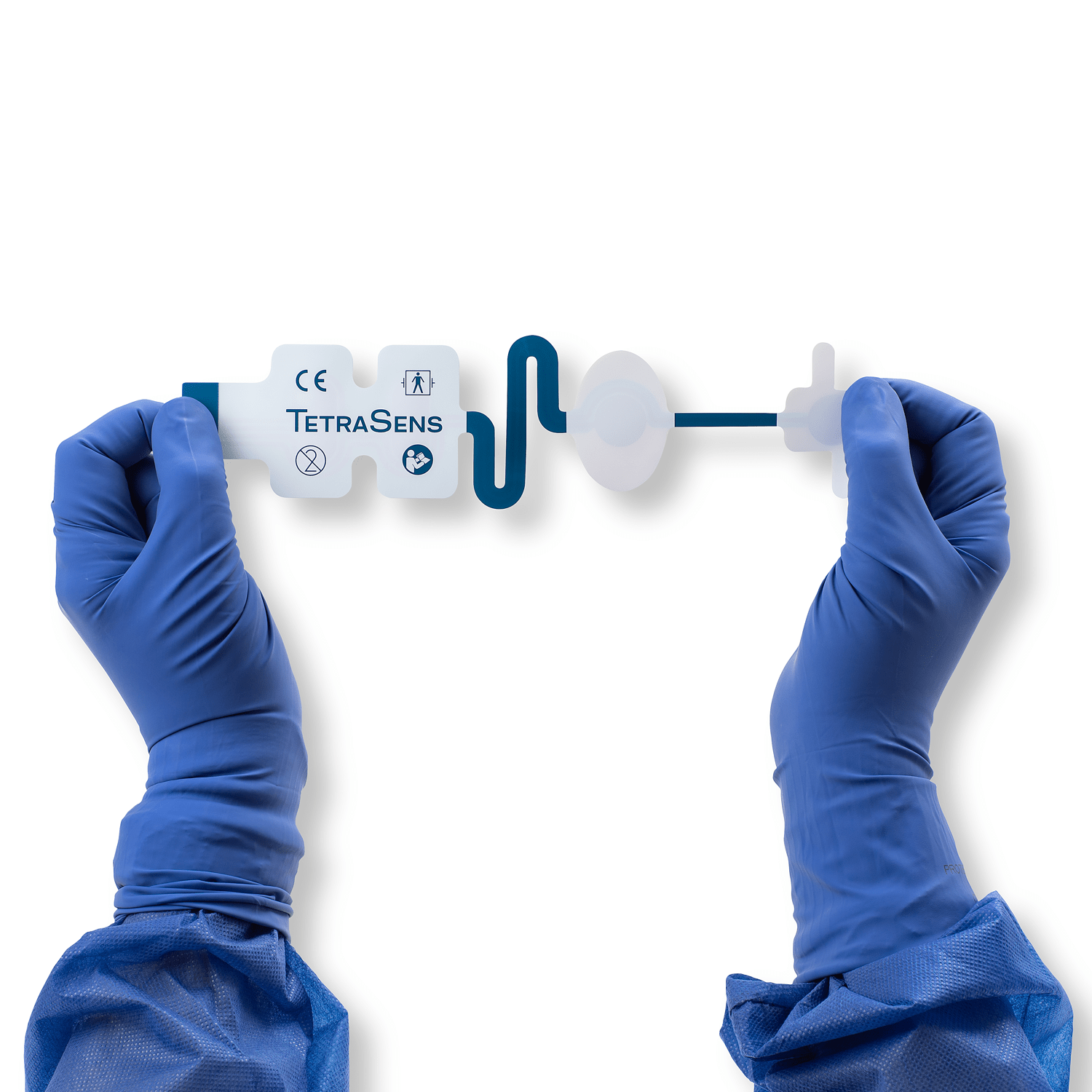

TetraSens electrode array has two proximal stimulating electrodes, one recording electrode and one reference electrode. The application is easy and quick. TetraSens electrode array is for single-patient use in order to avoid cross contamination. The electrodes can be applied on either hand, with the stimulation electrodes over the ulnar nerve at the wrist and the evoked response recorded from any of the hand muscles; typically, either the muscle at the base of the little finger (abductor digiti minimi muscle), or, more commonly, from the muscle at the base of the thumb, adductor pollicis muscle. TetraSens can also be placed on the FDI muscle (first dorsal interosseous). When the hand is inaccessible, the posterial tibial nerve (flexor hallucis brevis muscle), can be used for NMT monitoring.
Service is essential to keep medical equipment operational and safe. Our Nordic service team consists of experienced service technicians stationed across the Nordic countries. Our service technicians are ready to take on your every service need.”
BiliSwaddler®, phototherapy with fiberoptic lightpads
BiliSwaddler alows you to practise development-promoting care practically anywhere, whenever it is in the newborn intensive care unit, nursery or at home. During the therapy session, the baby can be breast fed or held without it impairing on the bonding between the infant and parents. One Swaddler size for all commonly used phototherapy fiber optic pads such as GE Healthcare, Natus Medical, Atom Medical etc.
Soft cushioning (3D knit fabric) for pressure relief and support of moisture management for optimum climatic control. BiliSwaddler can be used in a baby bed or in the arms of a caregiver (kangaroo care). Innovative Interlock-fabric (80% CO, 20% PES Trevira bioactive®) with a permananet antimicrobial effect is gentle and prevents skin irritation. Please use appropriate eye-protection during photo therapy sessions.
Innovative phototherapy cover made of a high-tex material
BiliCap® is made of a 3-layered functional specialty knit fabric. A highly elastic, breathable membrane in the core assures the phototherapy cover’s imperviousness to light. The 3D knit spacing fabric underneath ensures optimum noise attenuation, provides an anti-slip effect and permanently retains the cover’s shape.
Additionally, the material is characterised by low weight and contains an active substance with permanently antimicrobial effect.
BiliCap® optimally shields the surrounding treatment places against the high light intensity while providing fast and flexible access via 4 side and 2 head/foot flaps. The one-size design allows flexible use, fitting all incubator models commonly available on the market. BiliCap® is certified according to Oeko-Tex® Standard 100, washable up to 95 °C and suitable for tumble-drying. Guaranteed permanence of function and colour even in the case of frequent laundering. Available in 2 colours with individual ornaments and embroidery.
Top-of-the-range activity monitor
The ActiGraph GT9X Link captures and records high resolution human activity information using a solid state 3-axis MEMS accelerometer and our proprietary filtering algorithm. The GT9X Link is our most sophisticated activity monitor and represents a significant upgrade from previous models. Building on our validated physical activity and sleep measurement platform, it has been redesigned with a rich set of new features along with multiple new channels of sensor data captured by gyroscope, magnetometer and secondary accelerometer. High resolution LCD screen, Bluetooth® for wireless data capture and uploads to ActiGraph’s mobile applications makes GTX9 Link the most versatile and user-friendly activity monitor in our range. It is fully backward compatible with previous device models to ensure data comparability for our existing clients.
Reliable respiration monitoring
The SISS BABYCONTROL monitors respiration of babies and infants and can thus provide reliable assistance against «Sudden Infant Death». High reliability, simple operation and convenient size make the SISS BABYCONTROL® a universally applicable instrument for baby monitoring in hospitals or at home.
Being prepared
Still today, “Sudden Infant Death” is an unforeseeable occurrence. 80% of the affected infants are entirely healthy beforehand. Only 20% are from so-called risk groups (former premature births or babies already suffering from life-threatening conditions or with a «Sudden Infant Death» among close relatives). Only a prompt alarm in the event of irregularities provides the chance to apply life-saving measures within the shortest possible time. Such measures should be learned beforehand in special courses.
